Plywood & O.S.B.
REFERENCE GALLERY
Please select an image below to see a large detailed version. You can the scroll through larger versions of all the images if desired.
Phenolic Film Faced Birch – Mesh Face
Phenolic Film Faced Birch – Mesh Face
Phenolic Film Faced Birch – Hexagon Face
Phenolic Film Faced Birch – Hexagon Face
Birch Throughout
Birch Throughout
White Matt Melamine Faced Birch
White Matt Melamine Faced Birch
Spanish Poplar
Spanish Poplar
Flexible
Flexible

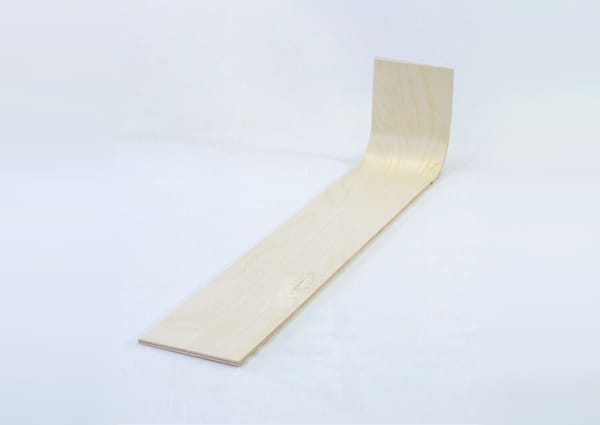

9mm Bull Nosed Stair Riser
Bull Nosed Plywood Stair Riser
Malaysian Mixed Hardwood
Malaysian Mixed Hardwood
Chinese Eucalyptus Core
Chinese Eucalyptus Core
Finnish Wisa Spruce
Finnish Wisa Spruce
Brazilian Elliottis Pine
Brazilian Elliottis Pine
OSB
OSB
Please note, the above images are intended as a guide only and to help illustrate the differences between the various colours/finishes. All computer/tablet/mobile screens display colour slightly differently and so it’s not possible to guarantee that the colour you’re seeing is an exact match to the actual product.
| Hardwood Plywood | ||||
Indonesian Marine Plywood BB/CC Faces. BS1088. EN314-2-3./EN636-2. Third Party Verified. | ||||
Swipe left for all sizes | 2440x1220mm | |||
| 6mm | Y | |||
| 9mm | Y | |||
| 12mm | Y | |||
| 15mm | Available to order | |||
| 18mm | Y | |||
| 25mm | Y | |||
Phenolic Film Faced Birch Plywood. 220g Face/120g Smooth Reverse. FSC Mix 70%. | ||||
| 2440x1220mm | 1525x3050mm | |||
| 12mm Mesh Face | Y | No | ||
| 15mm Mesh Face | Y | No | ||
| 18mm Mesh Face | Y | Y | ||
| 24mm Mesh Face | Y | No | ||
| 18mm Hexagon Face | Y | No | ||
Finnish Birch Throughout Plywood G111 Face. EN314-2. 70% PEFC Certified. | ||||
| 1500x1500mm | ||||
| 1.5mm | Y | |||
Birch Throughout Plywood BB/BB Faces. EN314-2. FSC Mix 70%. | ||||
| 2440x1220mm | 1525x3050mm | |||
| 4mm | Y | Available to order | ||
| 6mm | Y | Y | ||
| 9mm | Y | Available to order | ||
| 12mm | Y | Y | ||
| 15mm | Y | Y | ||
| 18mm | Y | Y | ||
| 21mm | Y | Available to order | ||
| 24mm | Y | Y | ||
| 30mm | Available to order | Available to order | ||
| 40mm | Available to order | No | ||
| 50mm | Available to order | No | ||
Artisan Clear Face Birch Veneered Birch Throughout Plywood. FSC 100%. | ||||
| 2440x1220mm | 3050x1220mm | |||
| 4mm | Y | |||
| 6mm | Y | |||
| 9mm | Y | |||
| 12mm | Y | |||
| 15mm | Y | |||
| 18mm | Y | Y | ||
| 24mm | Y | |||
U.V. Lacquered Artisan Clear Face Birch Veneered Birch Throughout Plywood. FSC 100%. | ||||
| 2440x1220mm | ||||
| 18mm | Y | |||
White Matt Melamine Faced Birch Plywood. FSC Mix 70%. | ||||
| 2440x1220mm | ||||
| 12mm | Available to order | |||
| 18mm | Y | |||
Spanish Poplar Plywood EN636-1S. 100% PEFC Certified. | ||||
| 2440x1220mm | 3050x1525mm | |||
| 6mm BB/BB | Y | Available to order | ||
| 9mm B/BB | Y | Available to order | ||
| 12mm B/BB | Y | Available to order | ||
| 15mm B/BB | Y | Available to order | ||
| 18mm B/BB | Y | Available to order | ||
| 25mm B/BB | Y | Available to order | ||
| 30mm B/BB | Y | Available to order | ||
Flexible Plywood BB/CC Faces - Interior Glue Line | ||||
|
1220x2440mm (Short Grain) |
2440x1220mm (Long Grain) | |||
| 5mm | Y | Y | ||
| 8mm | Y | Y | ||
Bull Nosed Plywood Stair Riser | ||||
| 1220x203mm | ||||
| 9mm | Y | |||
Malaysian Mixed Hardwood Plywood BB/CC Faces. EN636-3. 70% PEFC Certified. | ||||
| 2440x1220mm | ||||
| 3.6mm White Polyester 1 face | Y | |||
| 3.6mm | Y | |||
| 5.5mm | Y | |||
| 9mm | Y | |||
| 12mm | Y | |||
| 15mm | Y | |||
| 18mm | Y | |||
| 22mm | Y | |||
| 25mm | Y | |||
Exterior (72 Hour Glue) Chinese Eucalyptus Throughout Plywood B/BB Faces. EN314-2-3/EN636-3s. CE2+. FSC 100%. | ||||
| 2440x1220mm | ||||
| 9mm | Y | |||
| 12mm | Y | |||
| 18mm | Y | |||
Chinese Eucalyptus Core Plywood BB/CC Faces Ext. EN13986/EN636-2. FSC 100%. | ||||
| 2440x1220mm | 3050x1525mm (EN636-1) | |||
| 3.6mm | Y | Available to order | ||
| 5.5mm | Y | Y | ||
| 9mm | Y | Available to order | ||
| 12mm | Y | Available to order | ||
| 15mm | Y | Available to order | ||
| 18mm | Y | Available to order | ||
| 25mm | Available to order | Available to order | ||
| **Veneered Plywood is listed on our Decorative Veneered Panels Page** | ||||
| Softwood Plywood | ||||
Finnish Wisa Spruce Plywood G/111 Face CE2+.
EN314-2-2/EN636-2S. FSC Mix Credit. | ||||
| 2440x1220mm | 2400x600mm T&G 4 Edges | |||
| 12mm | Y | No | ||
| 18mm | Y | Y | ||
| 22mm | No | Y | ||
Brazilian Elliottis Pine Plywood C+/C Faces CE2+.
EN636-2S. FSC Mix 70%. | ||||
| 2440x1220mm | ||||
| 12mm | Y | |||
| 18mm | Y | |||
| 24mm | Y | |||
| O.S.B. | ||||||
Smartply BBA Certified O.S.B.3 FSC Mix 70% | ||||||
| 2440x1220mm | 2400x590mm T&G 4 Edges | 2397x1197mm | ||||
| 9mm | No | No | Available to order | |||
| 11mm | Y | No | No | |||
| 18mm | Y | Available to order | No | |||
| 22mm | No | Available to order | No | |||
